ST5484E Velocity Transmitters
Model: ST5484E

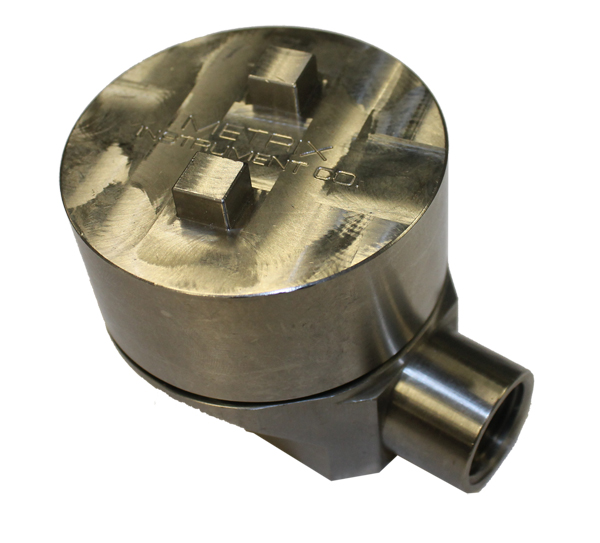

The Metrix ST5484E is a self-contained, loop-powered seismic velocity transmitter that incorporates a piezo-electric accelerometer, signal integrator, RMS peak detector, and 4-20 mA signal conditioner into a single, robust package. The transmitter can be mounted directly on the machine case or bearing housing without need of any intervening signal conditioning equipment. Its 4-20 mA output signal is compatible with most industrial process control instrumentation such as PLCs, DCSs, and SCADA systems, allowing trending and/or alarming capabilities for a simple, economical vibration monitoring solution. The transmitter is also available in a 4-wire version where the extra two conductors provide direct access to the raw acceleration signal, facilitating easy connection to portable data collectors and analyzers.
An extremely wide range of full-scale outputs, mounting stud options, and hazardous area approvals are available, along with an option for 316 stainless steel case materials (303 stainless is standard). The ST5484E Velocity Transmitter is a perfect choice when you are monitoring your rolling element bearing assets.
For flexibility and ease of wiring, three basic styles are offered:
- Flying Leads
- Terminal Strips
- 2-pin MIL connector
Product Aprox. Weight: 0.36 kg (0.8 lbs)
